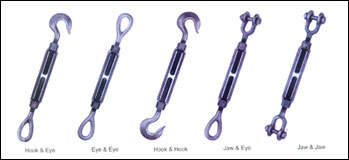

Turn Buckles

Diameter And TakeUP Size(A x B) AverageOverall With ends in Close Position inches Weight (Each)
inches mm inches mm Kgs Kgs Kgs
1/4 x 4 6 x 100 8 1/4 210 0.14 0.16 0.14
5/16 x 4 1/2 8 x 114 9 1/4 240 0.19 0.24 0.21
3/8 x 6 10 x 150 11 7/8 300 0.32 0.37 0.34
1/2 x 6 12 x 150 13 5/16 340 0.66 0.73 0.69
1/2 x9 12 x 225 16 5/16 415 0.76 0.79 0.69
1/2 x 12 12 x 300 19 5/16 490 0.91 0.96 0.93
5/8 x 6 16 x 150 15 1/2 390 1.06 1.37 1.06
5/8 x 9 16 x 225 18 1/2 470 1.30 1.30 1.39
5/8 x 12 16 x 300 21 1/2 545 1.71 1.53 1.71
3/4 x 6 19 x 150 17 430 1065 1.86 1.75
3/4 x 9 19 x 225 20 508 1095 2.31 1.95
3/4 x 12 19 x 300 23 585 2.30 2.56 2.43
3/4 x 18 19 x 450 29 735 2.85 3.11 2.98
7/8 x 12 22 x 300 24 5/8 625 3.33 3.70 3.52
7/8 x 18 22 x 450 30 5/8 775 4.24 4.14 4.19
1 x 6 25 x 150 20 5/8 520 3.86 4.22 4.04
1 x 12 25 x 300 26 5/8 675 5.09 5.06 5.07
1 x 18 25 x 450 32 5/8 830 5099 6.61 6.02
1 x 24 25 x 600 38 5/8 980 7051 7.84 7.38
1 1/4 x 12 32 x 300 29 7/8 760 8.11 9.47 8.79
1 1/4 x 18 32 x 450 35 7/8 914 10.35 11.55 10.95
1 1/4 x 24 32 x 600 41 7/8 1,064 12.13 13.00 12.87
1 1/2 x 12 38 x 300 32 820 12.66 13.61 13.13
1 1/2 x 18 38 x 450 3/8 975 15.04 14.30 14.69
1 1/2 x 24 38 x 600 44 3/8 1,125 17.07 18.42 17.75
1 3/4 x 18 45 x 450 41 3/4 1,060 23.05 24.93 22.27
1 3/4 x 24 45 x 600 47 3/4 1,210 26.27 28.70 27.49
2 x 24 50 x 600 51 3/4 1,315 40.68 45.30 42.850
