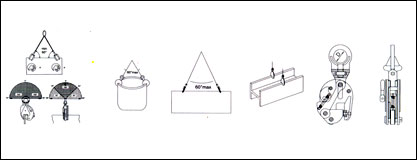

DSQ Vertical Plate Lifting Clamp

Art.No WILL ton Thickness mm N.W. Kg/pc A mm B mm C mm D mm E mm F mm G mm H mm I mm Jaw open mm
DSQ1
DSQ2
DSQ3
1
2
3
0-16
0-22
5-30
3.5
6.3
10.5
59
61
72
12
16
16
16
23
28
45
55
60
30
45
55
120
165
195
72
90
110
270
340
274
155
190
227
50
55
70
DSQ5
DSQ8
DSQ12
5
8
12
16-50
40-80
50-90
19.3
40
52
82
100
107
20
25
28
33
40
45
70
80
90
70
80
105
250
345
430
135
175
182
458
568
635
275
370
380
90
130
150
DSQ16 16 60-100 55 107 41 50 100 115 455 200 650 410 160

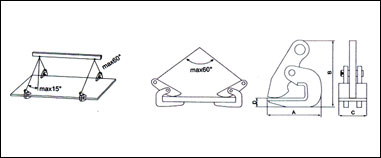

DHQ Horizontal Plate lifting Clamp

Art.No WLL t/2 Plate Thickness mm A mm B mm C mm D mm N.W. Kg
DHQ2
DHQ3
DHQ5
2
3
5
0-20
0-30
20-60
127
152
220
154
187
289
58
64
70
29
31
54
2.0
3.3
8.0
DHQ8
DHQ10
8
10
50-100
60-125
276
310
369
432
86
86
59
61
15.7
19.5
